GLOBAL BOW DETECTION

Viprotron's Bow Sensor reliably measures the global bow of a single glass lite on horizontal or vertical conveyors. It can be integrated as an optional module for quality inspection scanners or used as a stand-alone solution, ensuring that the total bow is accurately tracked in real time.

MEASUREMENT IN TWO DIRECTIONS

Transport direction:‍

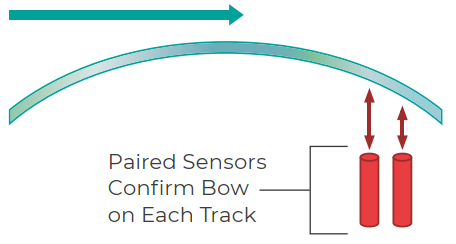

Two ultrasonic sensors along the glass path measure the curvature along up to 10 tracks, providing the maximum bow as the final result.

Perpendicular direction:‍

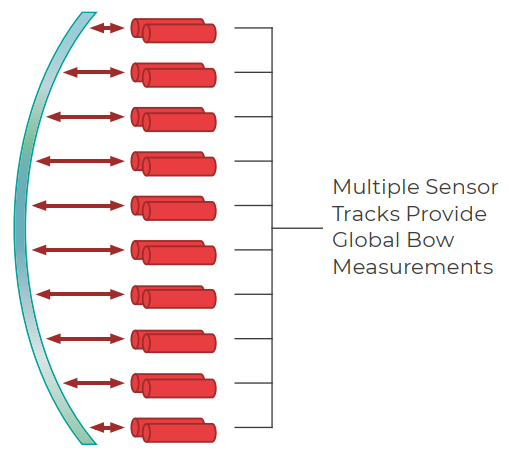

Another set of 10 tracks measures the bow perpendicular to transport.
The resulting 3D data represent the maximum bow in all directions, independent of glass thickness.

DESIGN & OPERATIONAL ADVANTAGES

‍
Thanks to the innovative design:

• No gap is required between sensors
• No recalibration is needed
• Conveyor unevenness does not affect measurements
  The Bow Sensor is engineered for continuous, dynamic quality assurance in modern glass production lines.

KEY FEATURES:

• 3D bow measurement along and across transport
• Maximum bow detection across multiple tracks
• No recalibration required
• Independent of glass thickness and conveyor irregularities
