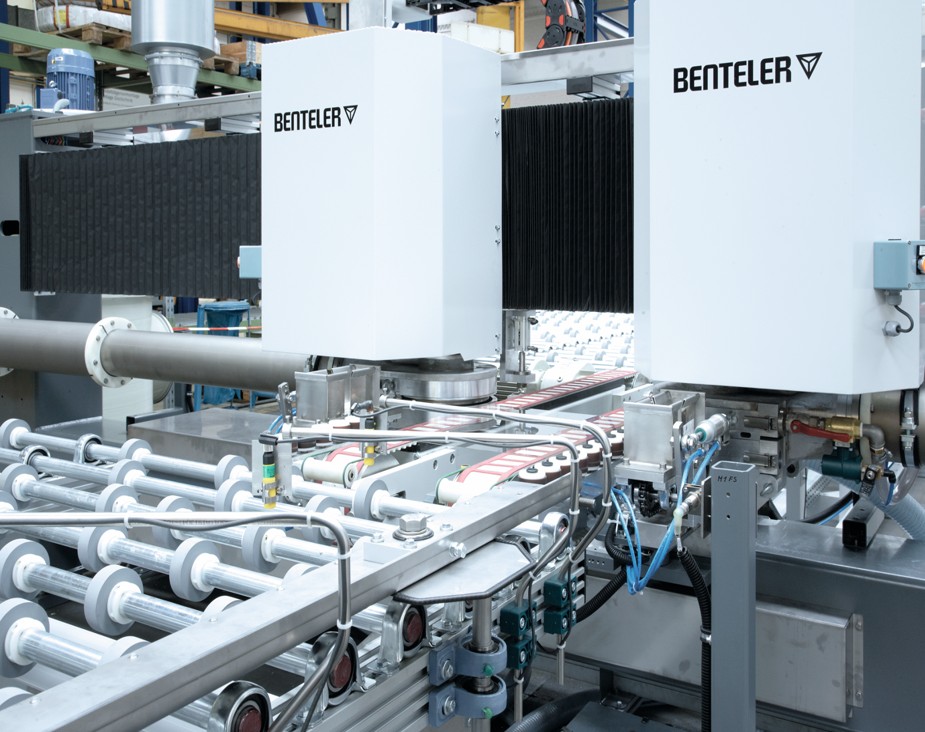

2ND GEN GRINDING MACHINE
A patented high-availability grinding solution designed for coated and uncoated glass, float glass, structured glass, and thin glass applications. With simple handling, high automation, and fast tool changeover, the machine supports efficient production with reliable edge and corner processing quality.
HIGH-QUALITY PROCESSING & SURFACE PROTECTION
The machine is designed to protect the glass surface during processing, with vacuum belts preventing contact with the top surface. A patented cooling water extraction system helps keep the glass surface free from cooling water, while automatic tool adjustment and wear compensation ensure consistent grinding quality and stable results.
%20C-edge%20grinding%20machine%20Gen2%20Picture2.jpg)
%20C-edge%20grinding%20machine%20Gen2%20Picture1.jpg)
FLEXIBLE MASS PRODUCTION & HIGH EFFICIENCY
Built for mass production, the system handles a wide range of glass dimensions and very thin glass thicknesses, with one or two grinding spindles per side. Efficiency is supported through automatic tool sharpening, reduced maintenance and cleaning times, quick hydraulic tool changes, and the ability to use the same processing tool for both glass edges and corners.
Technical data
- Max. glass size: 3,200 × 3,200 mm
- Glass thickness: 0.5 – 6 mm
- Working speed: Max. 16 m/min
- 45° corner cut: 2 – 5 mm
- Finished glass tolerance, 1,000 × 1,000 mm: ±0.2 mm
