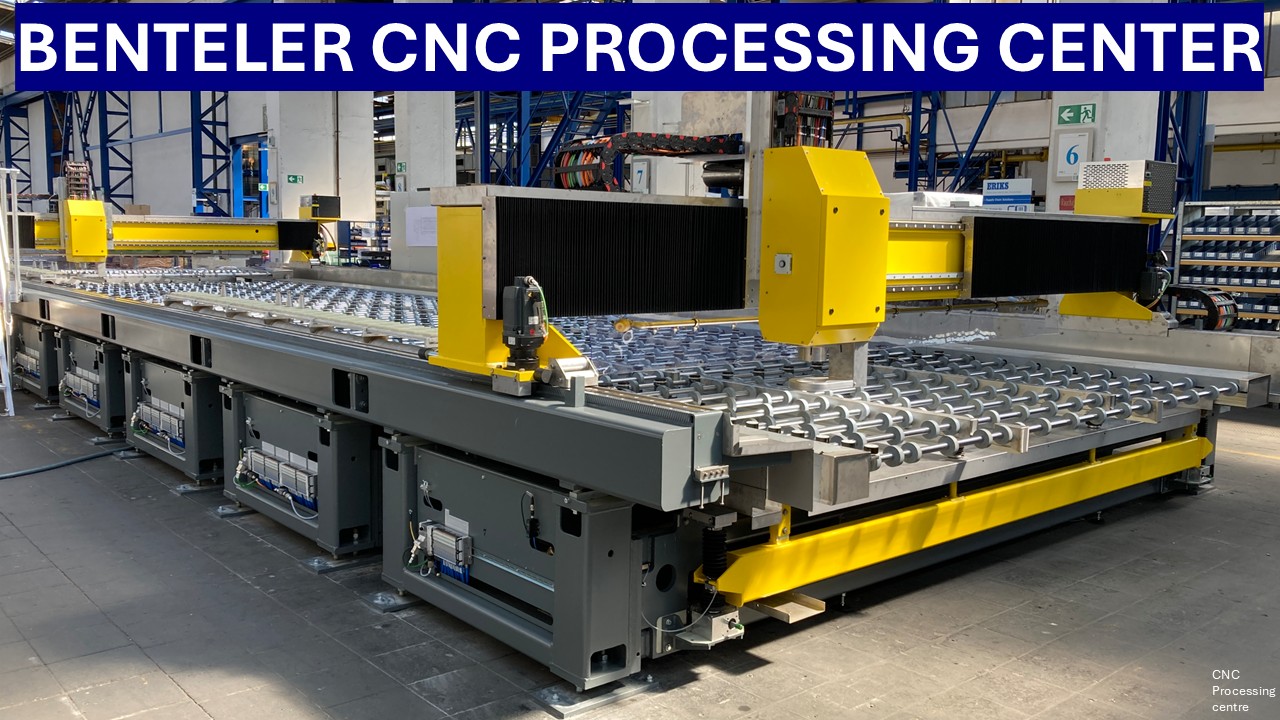

MULTIPLE SOLUTIONS FOR VARIOUS CNC PROCESSING CENTERS

From 3-Axes to 5-Axes, from normal to upper size, with one or with two processing bridges. Due to the customer requirements, he can select between a variety of solutions.

Thanks to the automatic infeed and exit transport, as well as the automatic suction control and tool loading, there is no need for any set-up work.

We can offer a reliable and fast processing customer specific solution due to the experience and continuous development of our CNC Processing Centers over the years.

In this way, the CNC Processing Center can fully automatically process different machining operations on different glass panels without loss time for transportation or setup.

ADVANTAGES

HIGH PRECISION

• No manual setup-work, automatic zero adjustment
• Highest precision during the process, glasses are fixed steady and unmoved on vacuum-cups
• HSD, water-cooled, directly driven spindle

PROCESS RELIABILITY

• BENTELER software and hardware interfaces
• Automatic cleaning mode
• Robust components ensure reliable performance with minimal maintenance

FLEXIBILITY

• Up to 20m glass length
• 3 or 5 Axes processing spindle
• 1 or 2 processing bridges
• Parallel processing
• Automatic tool changer
• Process without contacting coated surface of glass

Technical data

• Max. glass size: 3.300 mm x 20.000 mm
• Min. glass size: 400 mm x 800 mm
• Glass thickness: 3-19 mm
• Conveyor transport-speed: 40m/min
• Tool-diameter grinding/polishing: 100 mm
• Tool holding fixture: ISO 40, cone
• Time for tool changing: 8 sec.
• Spindle rpm: 0 – 12.000 U/min
