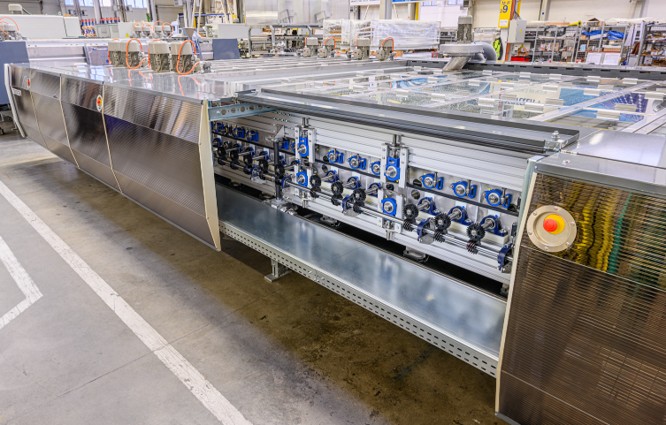

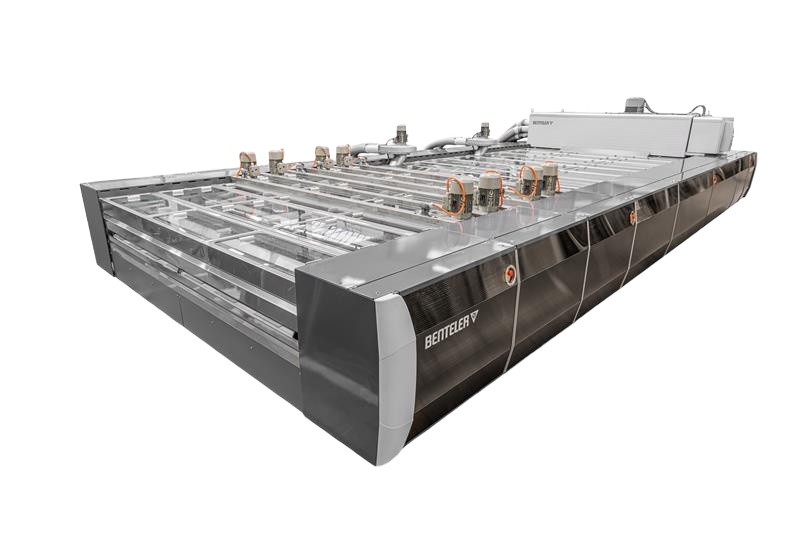

BENTELER COATING WASHING MACHINE
A modular glass washing solution designed to deliver consistent, high-quality cleaning results across a wide range of coating and processing applications. By combining efficient polishing, cleaning, and rinsing systems, it ensures optimal performance with minimal maintenance requirements.
SUPERIOR CLEANING & DRYING PERFORMANCE
The system is engineered to achieve exceptional washing and drying quality through advanced spray zones operating up to 10 bar from both above and below. Multiple customizable washing sets, each equipped with its own tank, pump, and heating system, ensure precise cleaning for different applications. Oscillating polishing brushes effectively remove dirt and oxide layers, while the separation between polishing and cleaning zones enhances efficiency. An innovative drying process with high-performance filters guarantees spotless results.
FLEXIBILITY & USER-FRIENDLY OPERATION
Designed for seamless integration into production lines, the machine features automatic glass thickness measurement and adaptable control systems. Its modular construction with standardized components ensures low operating costs and long-term reliability. Maintenance is simplified with pull-out tanks, quick-release connections, and easy access to all components, making daily operation efficient and user-friendly.
Technical data
- Working width: up to 3,600 mm
- Glass thickness: 0.7 – 21 mm
- Operating speed: 3 – 25 m/min
- Minimum glass length: 280 / 350 mm
- Minimum glass width: 175 mm
