SPEED, PRECISION, AND AUTOMATION IN GLASS PROCESSING

The BENTELER DUPLEX portal drilling machine features two independently operating portals. Thanks to dual transport track with individual drives, both drilling- portals can process glass simultaneously. Every portal is equipped with a drilling and milling operation for fast and precise glass processing. Each portal can be equipped with a water jet cutting unit for even faster cut-outs. A horizontal buffer storagefor up to 10 glass sheets ensures continuous operation without interruptions. Before the glass leaves the line, it will send thru a washing machine the BENTLER tecWasher (F/G) who ensures that no glass-dust or other contaminants remain on the glass after it leaves the line.

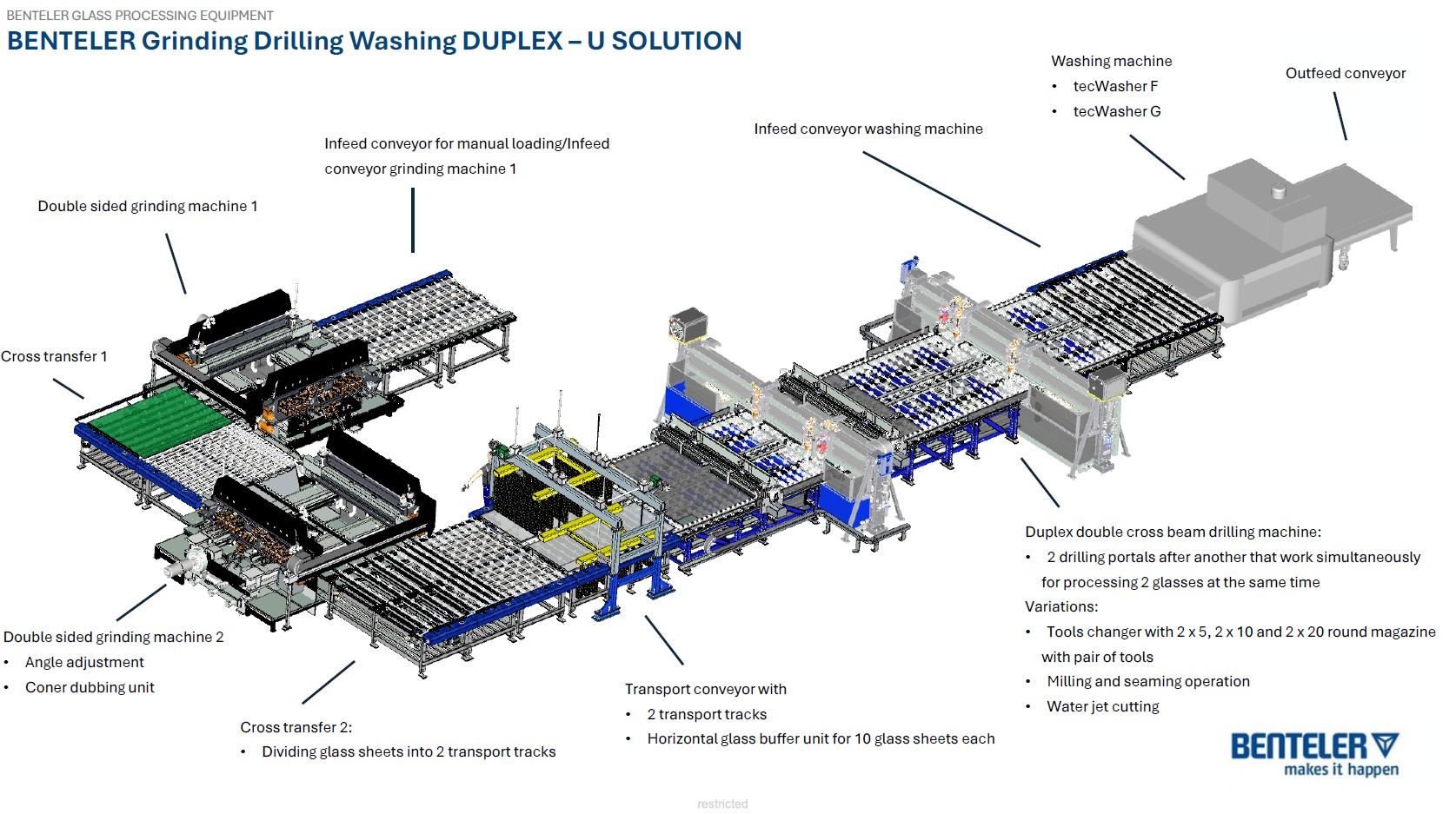

BENTELER GRINDING DRILLING WASHING DUPLEX SOLUTION

High-Efficiency glass processing Solution with Advanced technology.

High precision:

Precise glass measurement and self adjusting tools

Flexibility:

• The grinding drilling washing line can adjust itself for a big variation of glass sizes
• Duplex drilling machine with 2 Drilling portals and bypass track to process 2 glasses at once

High output:

• TecGrinder with self adjusting spindles for faster setup times
• Optional: water jet cutting unit for Duplex for even faster cut-outs User-friendly menu navigation

Process reliability:

• Utilizing the BENTELER technology control
• Advanced machine control with intuitive operation

Technical data

• Max. glass size: 3300 x 6000 mm
• Glass thickness: 3 – 19 mm
• Glass with adjustment speed of grinding machine: 30 m/min
• Working speed of grinding machine: max 15 m/min
• Drilling spindle speed frequency controlled: 900 – 3600 rpm
• Drilling speed: up to 7000 mm/min
• Speed range milling: up to 450 mm/min
• Speed range seaming up to 750 mm/min
