MAXIMUM EFFICIENCY, PRECISION, AND CLEANING FOR MODERN GLASS PROCESSING

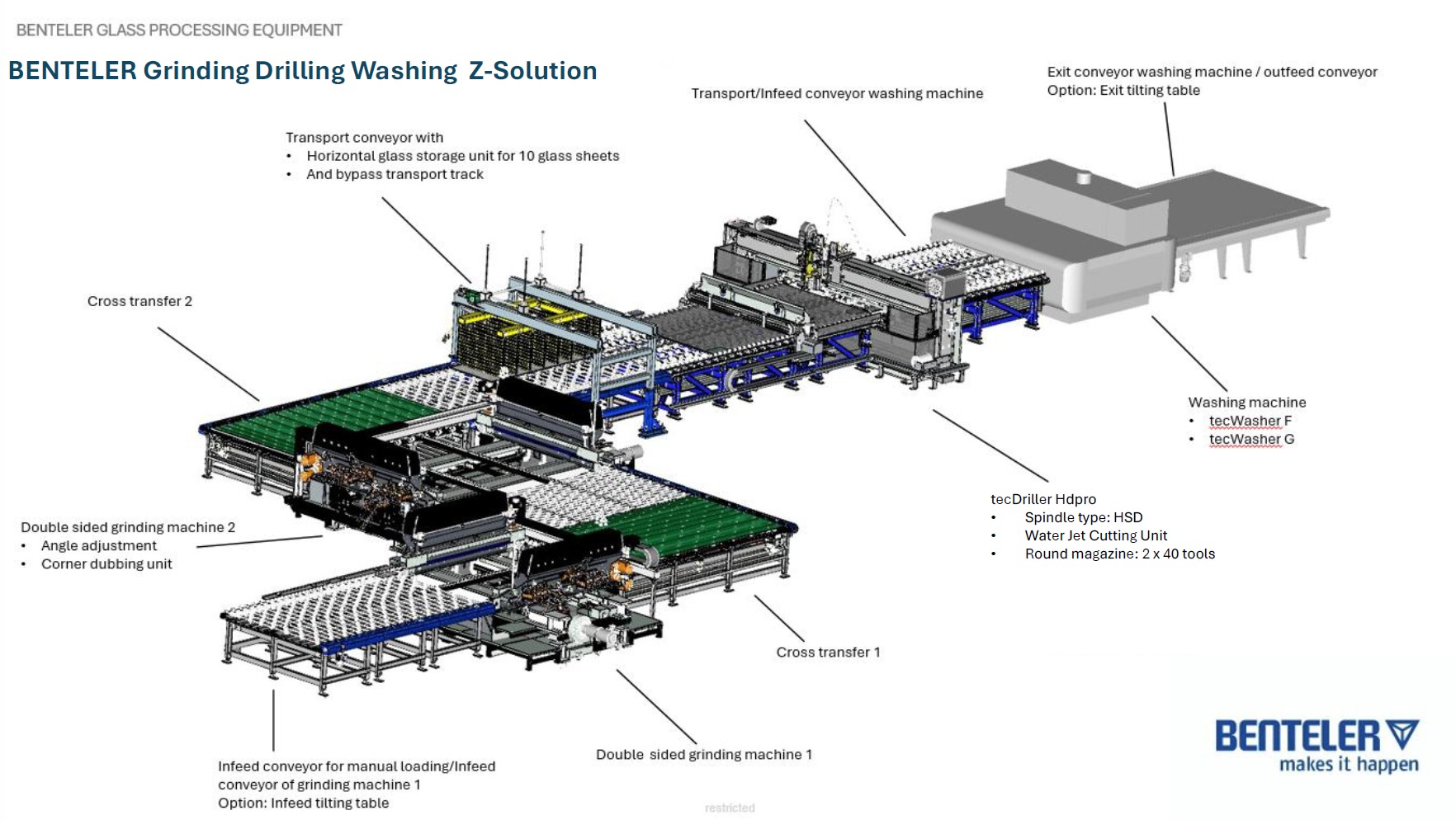

The line starts with the tecGrinder, a double-sided grinding machine featuring self adjusting spindles for high flexibility, fast line speed and less tool wear. After that follows the tecDriller, a drilling and milling machine equipped with an optional water jet cutting unit, enabling flexible and accurate glass processing. Optional is a buffer conveyor for 10 glass sheets between the grinding and drilling machine to prevent process interruptions. At last is the washing machine (tecWasher F/G) who ensures that no glass dust or other contaminants remain on the glass after it leaves the line, guaranteeing a clean and flawless surface.

HIGH-EFFICIENCY GLASS PROCESSING SOLUTION WITH ADVANCED TECHNOLOGY

High precision:

Precise glass processing with double edge grinding machines

Flexibility:

• The GWD-line can adjust itself for a big variation of glass sizes
• Automatic center support bars
• User-friendly menu navigation

Process reliability:

• Utilizing the BENTELER technology control
• Advanced machine control with intuitive operation
• Optional: water jet cutting unit for tecDriller for even faster cut-outs

High output:

• Compact machine design
• High speed adjustment for new glasses
• Self adjusting spindles for faster setup times

Technical data

• Max. glass size: 3300 x 20000 mm
• Glass thickness: 3-19 mm
• Glass with adjustment speed of grinding machine: 30 m/min
• Working speed of grinding machine: max 15 m/min
• Drilling spindle speed frequency controlled: 900 – 3600 rpm
• Drilling speed: up to 7000 mm/min
• Speed range milling: up to 450 mm/min
• Speed range seaming up to 750 mm/min
