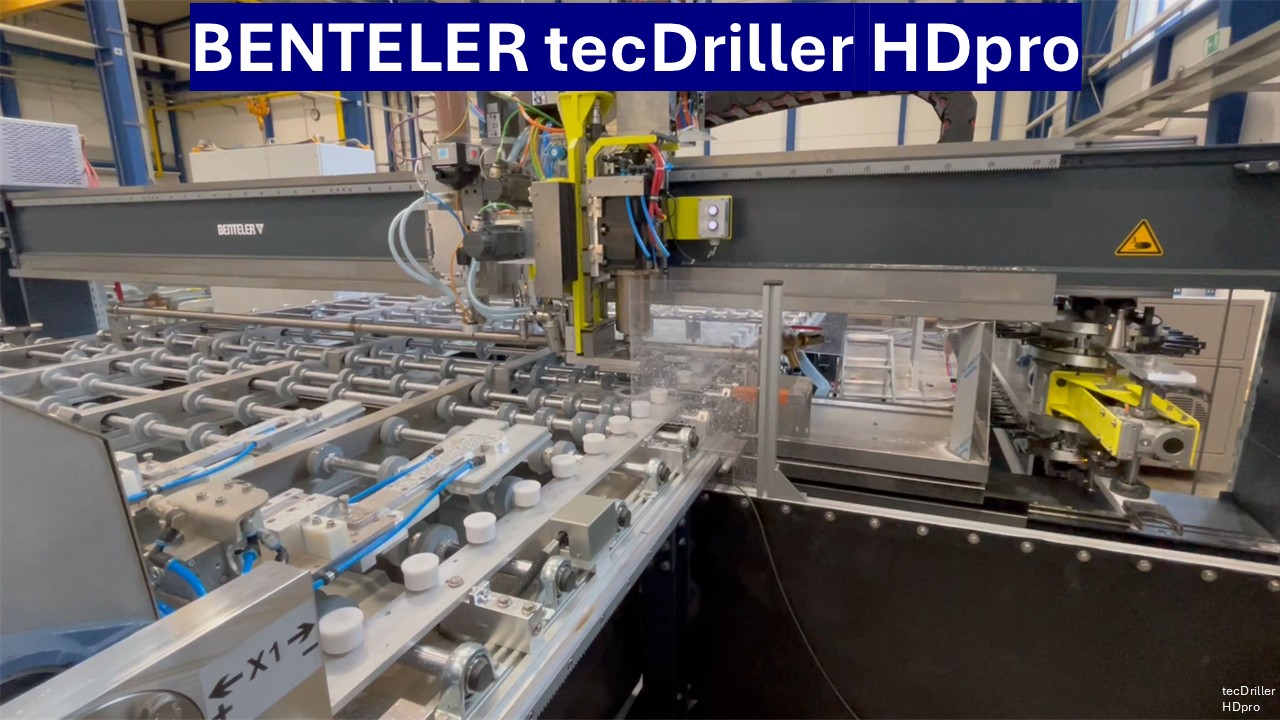

The BENTELER tecDriller HDpro combines precision and speed in one compact system.

Equipped with high-performance HSD spindles, it handles drilling, countersinking, grinding, and polishing with minimal setup. Integrated measuring and calibrating systems ensure accurate positioning, while the water jet cutting unit enables fast and clean cut-outs. Tool changes are automatic and rapid, supporting a wide range of processing tasks. With buffer storage and bypass options before the machine, the system optimizes workflow and adapts flexibly to different production needs.

BENTELER tecDriller HDpro Spindle Advantages

HIGH PRECISION and PROCESS RELIABILITY

• The machine works with HSD spindle
• Automatic measuring and calibrating system
• Automatic drilling
• Automatic countersinking
• Automatic grinding and polishing

FLEXIBILITY

• Very fast automatic tool changing

BENTELER tecDriller HDpro Water Jet Cutting Unit Advantages

PROCESS RELIABILITY

• High pressure tubes and valve
• Beam receiver with flushing system
• Separate water tank for cutting water

SPEED

• Not limited by tools, compared to milling process feed rate: Factor 2,0

FLEXIBILITY

• Pump unit low pressure/high pressure

BENTELER tecDriller HDpro Tool Changer Advantages

PROCESS RELIABILITY

• Stationarily installed calibrating device

SPEED

• High speed tool changing in 7 sec

FLEXIBILITY

• Tool holder for drilling-, milling-, grinding- and polishing tools
• 1 Tool magazine for 40 upper & 40 lower tools

BENTELER tecDriller HDpro Options

Option: Grinding and polishing radii:

• Wide range of processing options
• Measurement system for precise positioning

Option: Buffer storage for Drilling machine

• Fast feeding for drilling or cut-outs from a glass storage
• Bypass for glasses without drilling or cut-outs

TECHNICAL DATA:

• Max glass size: min. 250 x 450, max. 3300 x 6000
• Glass thickness drilling : 3 – 19 mm
• Glass thickness milling: 3 – 12 mm
• Drilling spindle speed, frequency controlled: max. 10.00 rpm
• Drilling tool length: 75mm
• Tool diameter incl. counter sinking: max. 70 mm
