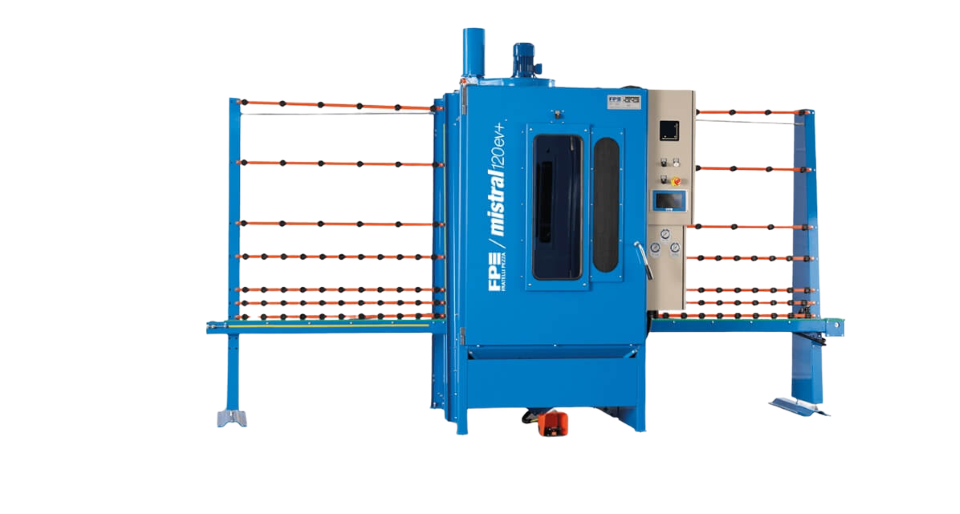

MISTRAL 120EV+
MISTRAL EV 120+
Surpassing the pinnacle of perfection.
Processing:
- Max. processing high: 1200mm
- Glass thickness up to: 50mm
- Open top
Working Features:
- Normal sandblasting
- Light sandblasting
- Shading sandblasting
- Shading engraved sandblasting
- Deep engraved sandblasting
- Zonal blasting
Standard Configurations:
- Sandblasting guns: 1
- Additional Sandblasting guns: 1
- Engraving feature
- Manual gun
- Self-cleaning filter
- Mirror Protection
.jpg)
Software:
- Storable programs: 1
- Repetitions (for engraving): 99
- Adjustment of the sandblasting step
- Gun speed adjustment
- Pause & Check
- Predictive maintenance
- Counters
- 4.0
Consumption & Performance:
- Electrical consumption: 2kW
- Compressed air/gun consumption: 500L/min
- Working pressure: 6-8Bar
- Maximum productivity/1m2: 2,5/3 min
Automated Sandblasting Processing System Specifications:
- Automated processing for heights up to 1200 mm
- Standard setup includes 1 automatic gun, with an option for a second gun upon request
- Total power consumption is 2 kW
