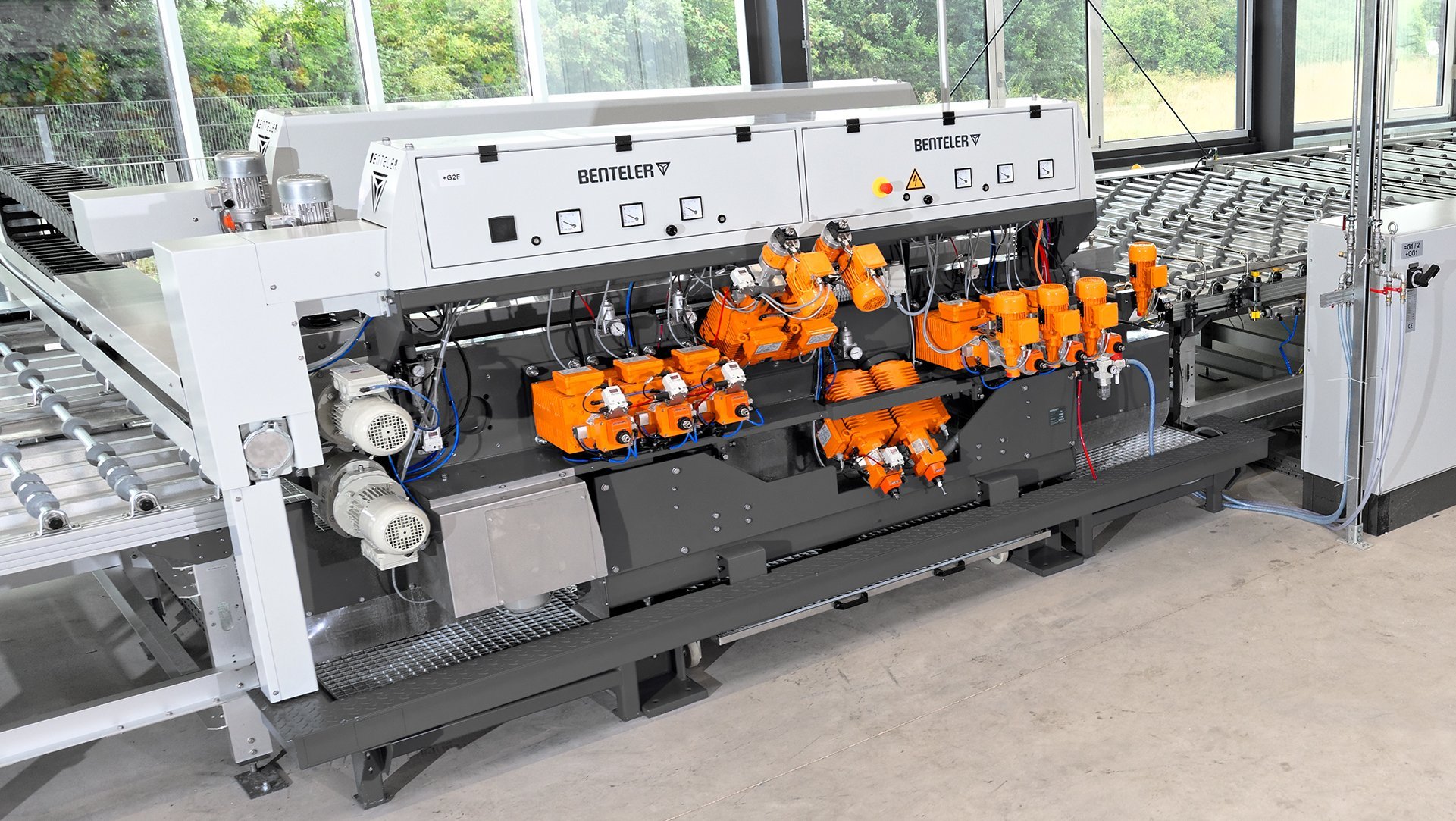

The BENTELER tecGrinder satisfies with short set-up times due to rapid width and automatic glass thickness adjustment. Your solution for flexibility, high process reliability and speed for all K-edge contours. The tecGrinder can be linked with an automatic handling system and a washing machine to a complete processing line, to avoid the handling in the manufacturing and to minimize cycle times. Your solution for flexibility, high process reliability and speed for all K-edge contours.

Advantages

High precision:

• Optimal grinding results up to 14 stations for each side for grinding and polishing of edge and seam
• Automatic side and angle alignment
• Solid machine frame and robust components


Flexibility:

• Automatic glass thickness adjustment
• Rapid and precise width adjustment

Process reliability:

• Completely encapsulated high-performance grinding and polishing spindles
• State-of-the-art machine control - Simple operating and menu guidance
• Evaluation of operating costs through an integrated data acquisition system

Simple operating:

• High working speed

‍

TECHINCAL DATA

• Max. glass size: 3.300 x 20.000 mm
• Glass thickness: 3 – 21 mm
• Width adjustment speed: 30 m/min
• Working speed: max. 15 m/min

‍
