PERFORMANCE AND RELIABILITY

‍This range maintains Zafferani Glas’ hallmark simplicity of construction, ease of use, and long-term reliability, while offering high working speeds that significantly increase production output. Divided into four models with configurations from 2 to 6 wheels, the range is designed to cover the requirements of small and medium-sized glass processing companies. All machines are fully compliant with European CE safety standards.

DESIGN AND FLEXIBILITY

Built with robust structural components, the machines feature front-access adjustments for grinding wheel alignment, material removal, and lateral inclination to accommodate different glass thicknesses. Stainless-steel tanks, durable conveyor systems, and high-quality rubber pads ensure long service life and stable operation. Upon request, all models can be equipped with a motorized system for processing parallelogram-shaped glass or high and narrow strips.

Technical data:

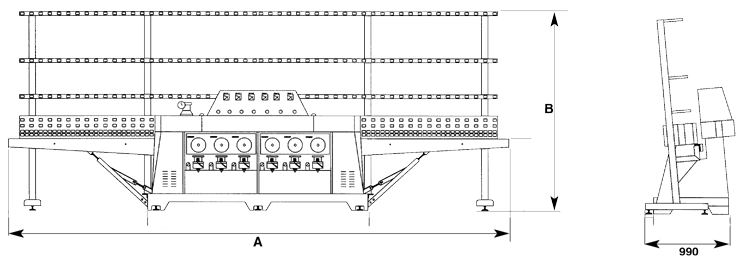

• ‍Junior 2M/12: 2 wheels, glass thickness 3–12 mm, minimum glass height 8 cm, dimensions 4090 × 2375 mm‍
• Senior 2M/22: 2 wheels, glass thickness 3–22 mm, minimum glass height 8 cm, dimensions 4090 × 2375 mm‍
• Master 4M/22: 4 wheels, glass thickness 3–22 mm, minimum glass height 8 cm, dimensions 5450 × 2375 mm‍
• Master 6M/22: 6 wheels, glass thickness 3–22 mm, minimum glass height 5 cm, dimensions 5900 × 2375 mm

The range includes the Junior 2M/12, Senior 2M/22, Master 4M/22, and Master 6M/22, covering different production capacities and processing requirements.
