PRECISION AND USER-FRIENDLY OPERATION

‍The range includes eight models, all compliant with European CE safety standards. Standard features include adjustable glass direction, height-adjustable inlet conveyors, electronic control of polishing and arris wheels, and the ability to process out-of-square pieces. The touch-screen panel allows operators to perform self-diagnosis, track meters and hours worked, and selectively exclude polishing wheels for specific processes.

DURABILITY AND CUSTOMIZATION OPTIONS

‍Structural components such as lubricated conveyors, steel shoes with vulcanized rubber, stainless steel wheel and water tanks, and a ventilated electrical panel ensure long-lasting reliability. Optional enhancements include conveyor extensions, air compressors, and motorized systems for parallelogram-shaped or high and narrow glass strips. Zafferani Glas remains committed to customizing machines to meet special requirements, offering solutions tailored to each customer’s production needs.

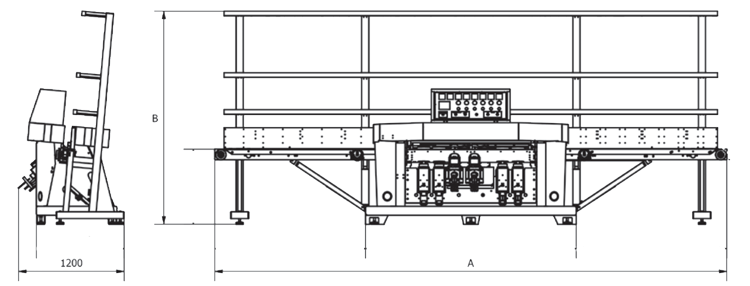

Technical data

• ‍Flat 4 FPE L – 4 wheels | 3–22 mm | Min glass h=5 cm | A–B: 4311–1591 mm‍
• Flat 5 FPE L – 5 wheels | 3–22 mm | Min glass h=5 cm | A–B: 5046–2326 mm‍
• Flat 6 FPE L – 6 wheels | 3–22 mm | Min glass h=5 cm | A–B: 5779–2326 mm‍
• Flat 630 L – 6 wheels | 3–30 mm | Min glass 8×8 cm | A–B: 5779–2326 mm‍
• Flat 8 FPE L – 8 wheels | 3–22 mm | Min glass h=5 cm | A–B: 5779–2326 mm‍
• Flat 830 L – 8 wheels | 3–30 mm | Min glass 8×8 cm | A–B: 5779–2326 mm‍
• Flat 830 Cerium – 8 wheels | 3–30 mm | Min glass 8×8 cm | A–B: 6208–2755 mm‍
• Flat 930 – 9 wheels | 3–30 mm | Min glass 8×8 cm | A–B: 6208–2755 mm‍
• Flat 930 Cerium – 9 wheels | 3–30 mm | Min glass 8×8 cm | A–B: 6208–2755 mm

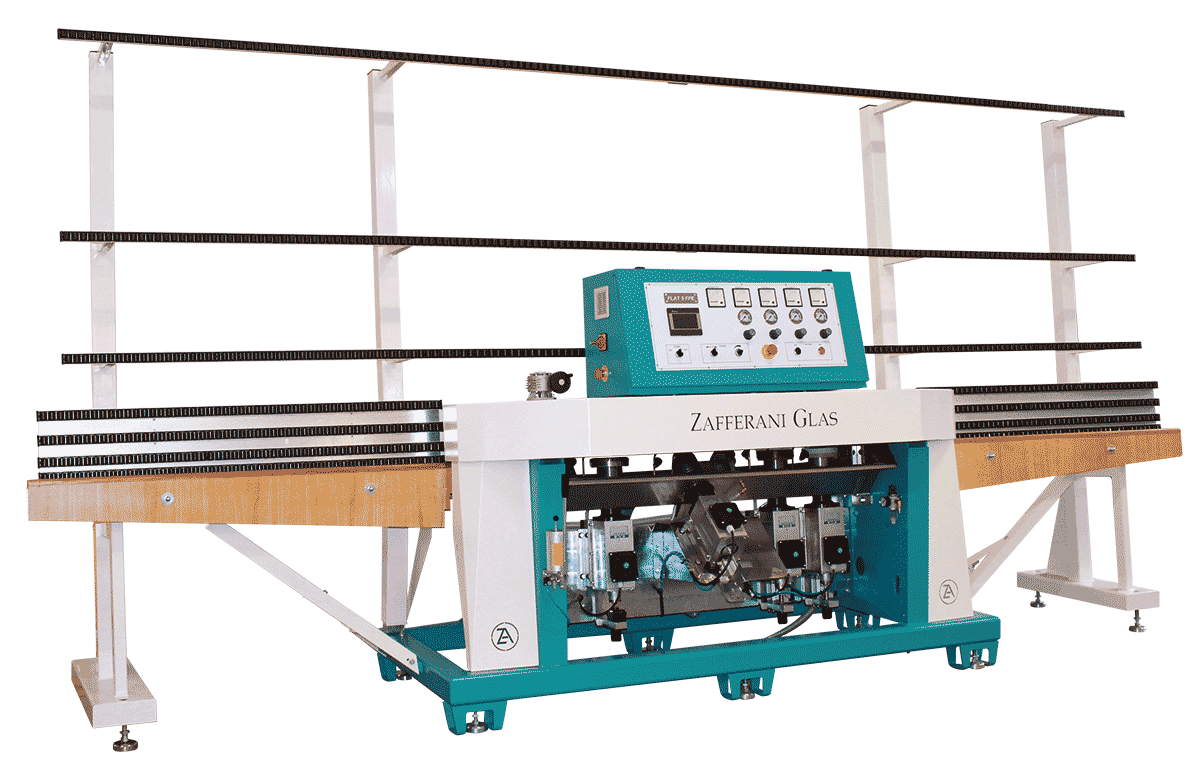

Fixed-Angle Edging Machine – Zafferani Glas
