SMART WORKFLOW & AUTOMATED HANDLING

The integrated belt transport system ensures efficient loading and offloading, maintaining a steady and continuous production flow. This reduces manual handling while increasing overall productivity.

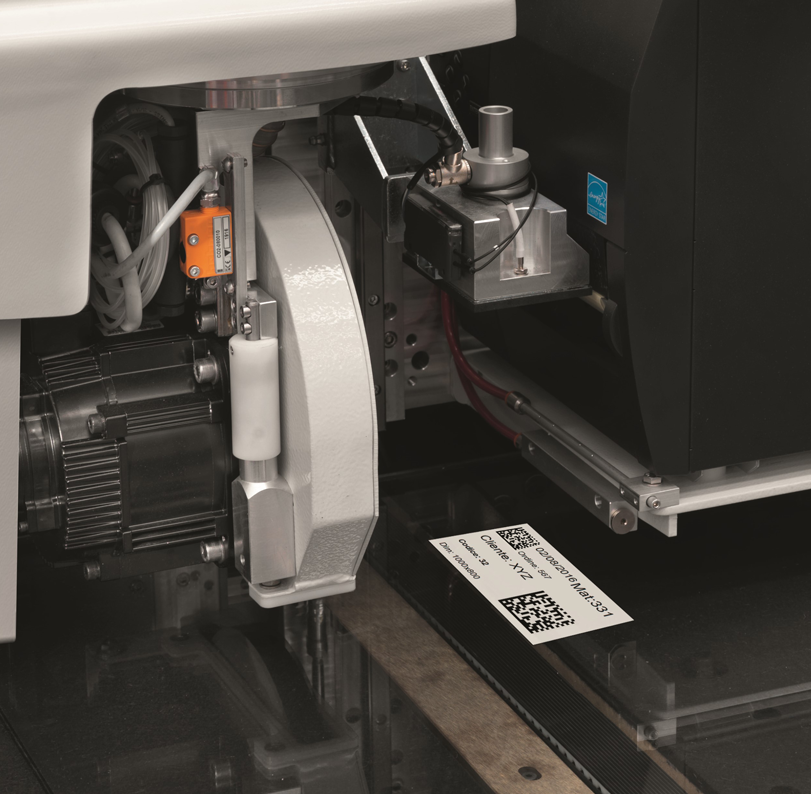

Automatic labeling before scoring eliminates manual tracking errors and guarantees full traceability of each cut part. Labels can include size, shape, and barcodes for accurate identification throughout the production process.

The labeling system can operate together with the TCR unit — a feature typically reserved for higher-end solutions — enhancing operational capability without added complexity.

Its intuitive interface and simplified programming minimize the learning curve, allowing operators to quickly unlock full machine functionality.

‍

HIGH-SPEED, STEADY PERFORMANCE

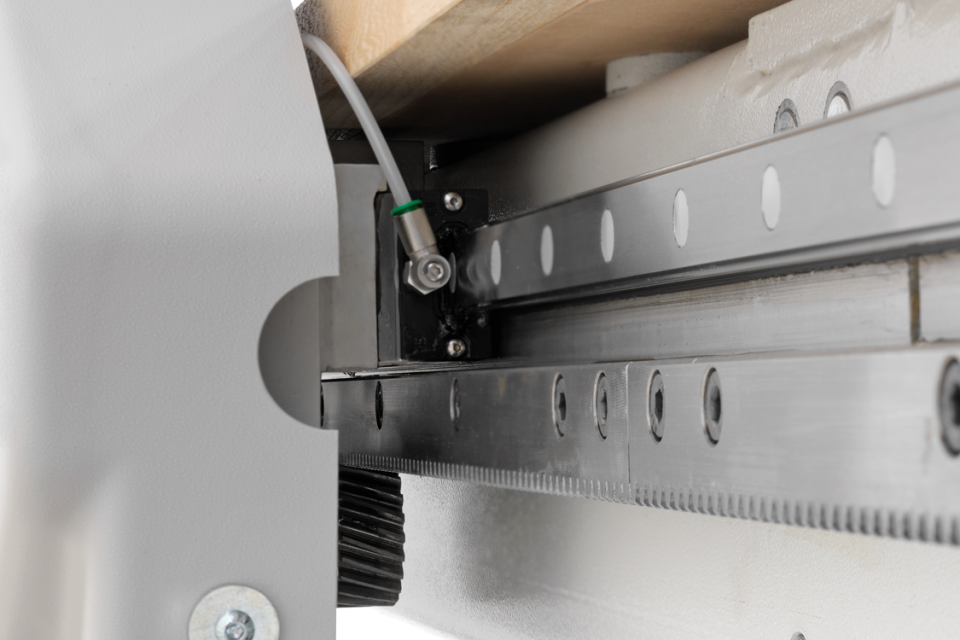

A robust frame combined with double linear guides and a rack-and-pinion system delivers exceptional speed, stability, and precision.

The powerful rotational axis ensures dynamic cutting performance, even during intensive production cycles.

The belt-driven transport system supports a consistent workflow, optimizing throughput in high-demand environments.

This engineering design guarantees reliable, repeatable results while maximizing operational efficiency.

TOOL FLEXIBILITY & PRECISION CUTTING

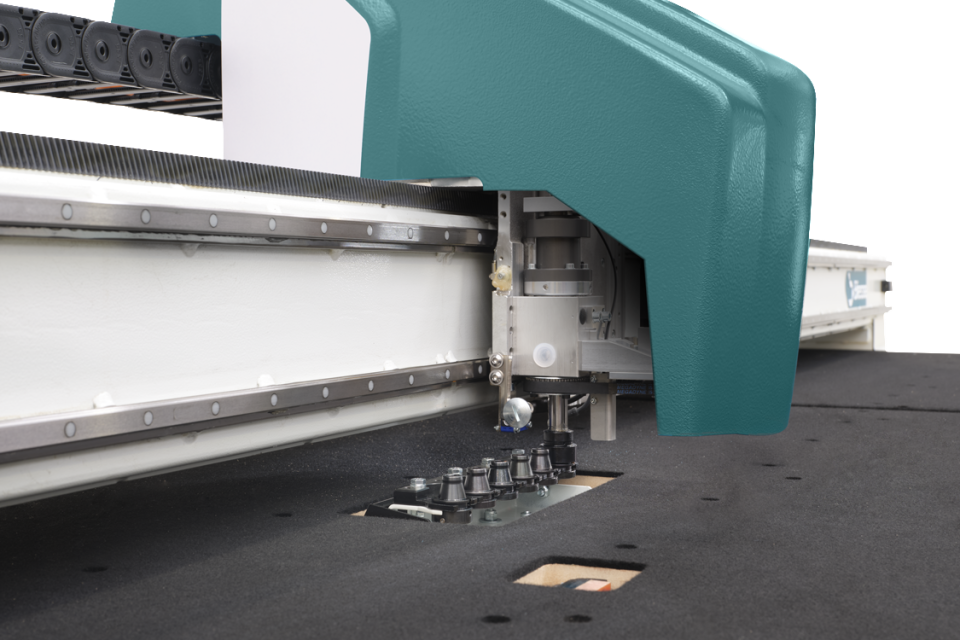

The 6-position automatic tool changer selects the correct cutting wheel and parameters for different glass types and thicknesses without manual intervention.

Pre-loaded parameter recipes linked to each tool allow instant pressure adjustments at the push of a button. A digital proportional valve automatically regulates cutting pressure for superior cut quality and easier breakout.

The machine performs continuous straight and shaped cutting across various glass thicknesses with seamless accuracy.

This combination of intelligent control and tool flexibility ensures optimal performance for every application.

LOW-E PROCESSING & MULTI-APPLICATION CAPABILITY

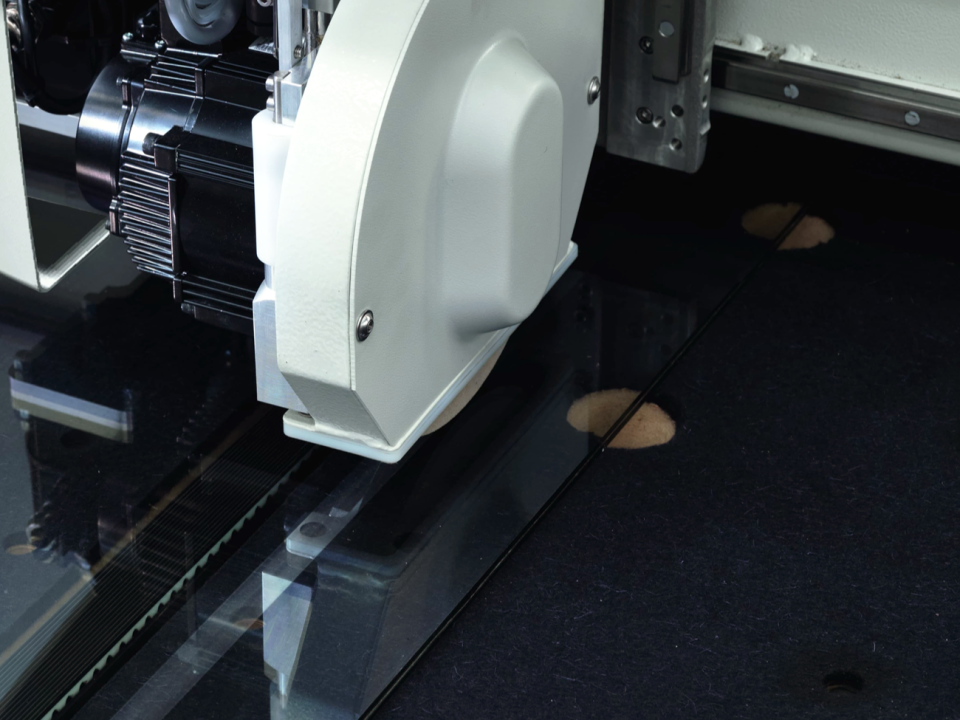

The advanced TCR unit with tangential wheel, driven by an independent motor, efficiently removes Low-E coatings along straight or shaped geometries.

A dedicated vacuum system with separate dust collection ensures perfectly clean edge deletion, even on demanding materials such as TPF or EasyPro glass.

The machine handles monolithic glass through scoring with tungsten carbide wheels followed by automatic sheet transfer for breakout on a separate table.

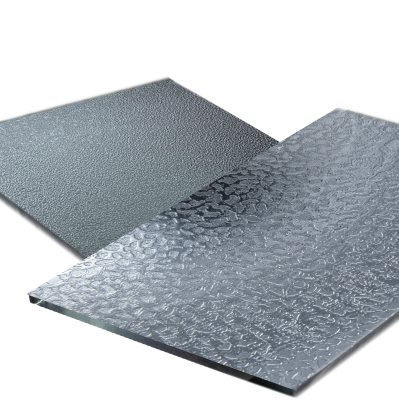

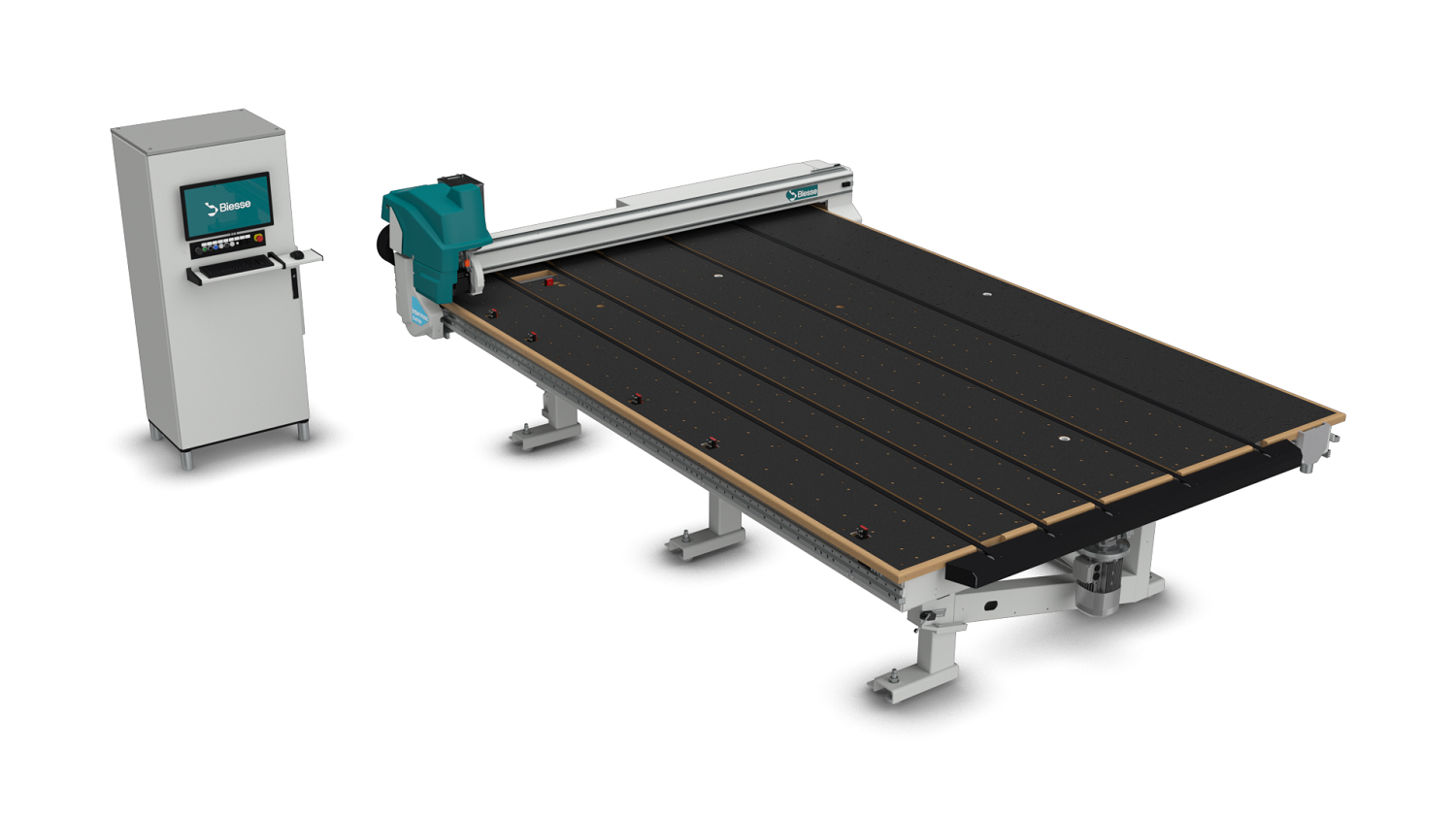

With quick tool change capability for mirror, patterned, and specialty glass cutting, the Cut Up M B expands production possibilities while maintaining the highest safety standards through protected safety zones and ergonomic design.
