FAST AND PRECISE GLASS PROCESSING

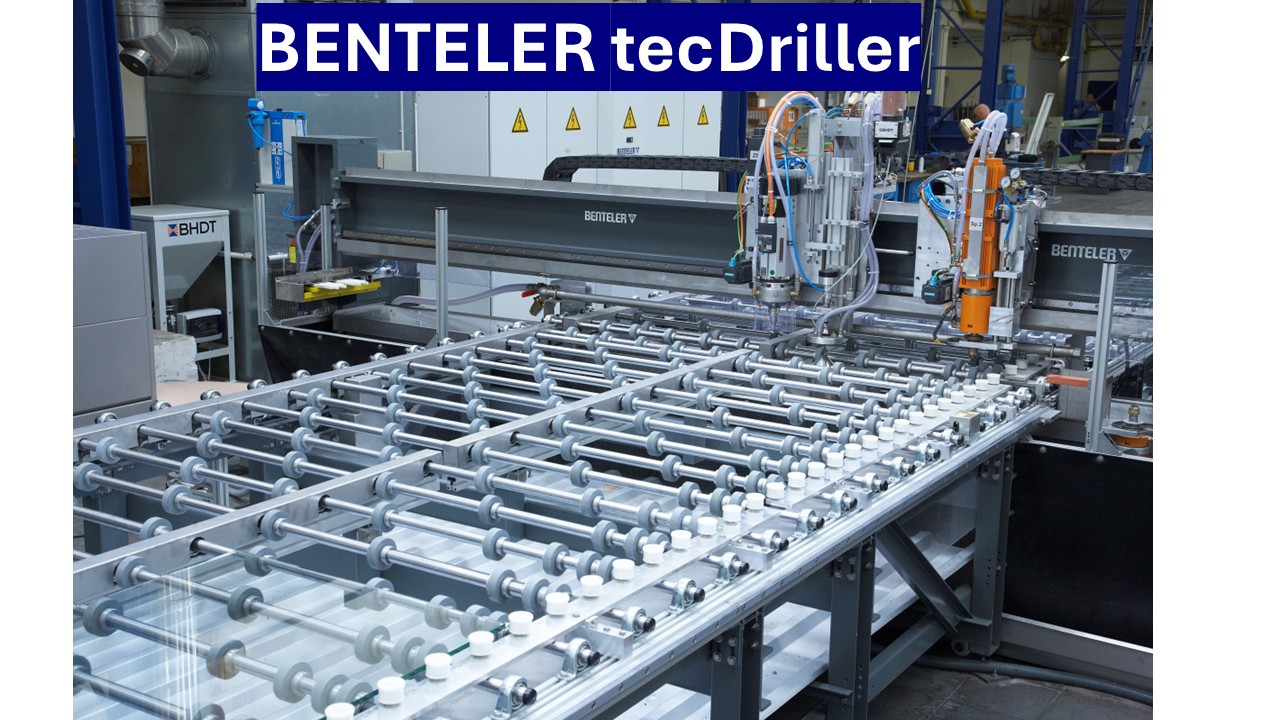

The BENTELER tecDriller ensures precise drilling and milling operations and can be optionally equipped with a water jet cutting unit for accelerated and highly accurate cut-outs. Robust components and an efficient cooling system ensure reliable performance with minimal maintenance. Independent spindles and a wide variety of tools enable a broad range of processing tasks. The machine can easily adapt to various production requirements.

TECDRILLER DRILLING SPINDLE ADVANTAGES

HIGH PRECISION

• Encapsulated and pressurized drilling spindles unit with NC-driven internal drill feed
• Simultaneous drilling is possible; this results in optimal quality and tolerances by drilling both sides

PROCESS RELIABILITY

• Reliavle and robust drilling spindles, less need of maintenance
• Easy-motion feed power transmission
• Cooling water supply trough the flushing head
• Automatic sharpening device

FLEXIBILITY

• Two independently controlled drilling spindle units
• High flexibility by using two different tools without tool change

TECDRILLER MILLING SPINDLE ADVANTAGES

HIGH PRECISION

• With 750 mm/min milling speed BENTELER guarantees precise and fast processing while working on different products

PROCESS RELIABILITY

• Good adjustment for cooling water
• Equipped with inner cooling system
• Extreme robust bearings for industrial use

FLEXIBILITY

• Separate milling spindle incl. frequency converter
• Play free positioning in X,Y and Z axis
• Milling and seaming with one tool
• Redundancy for water jet is given
• Optional: Water jet cutting unit

Technical data

• Max glass size: min. 180 x 450, max. 3300 x length unlimited
• Glass thickness drilling: 3 – 19 mm• Glass thickness milling: 3 – 12 mm
• Drilling spindle speed frequency controlled: 900 – 3600 rpm
• Drilling speed: up to 7000 mm/min
• Speed range milling: up to 450 mm/min
• Speed range seaming up to 750 mm/min
