PRECISION AND FLEXIBILITY

‍The range includes 4 models and 6 versions, capable of handling diverse glass thicknesses (3–30 mm / 1/8–1¼ in), minimum glass sizes (8×8 cm / 3¼×3¼ in), and variable mitering angles (0°–60°). Operators can easily adjust key parameters for both standard and complex glass shapes, ensuring high-quality, efficient processing. Optional motorized systems allow for processing parallelogram-shaped glass or high and narrow strips.

DURABILITY AND CUSTOMIZATION

‍All machines are built to last, with robust components designed for continuous production. Zafferani Glas also provides customization options to meet unique customer requirements, including electronic control of polishing wheels, conveyor adjustments, and tailored configurations. This ensures both productivity and quality while keeping operations flexible and adaptable.

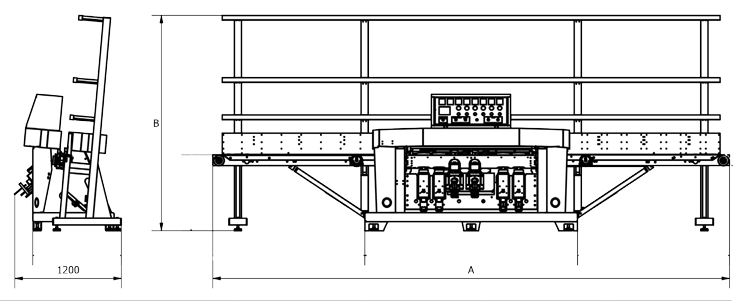

Technical data:

• ‍Flat 5 BS – 5 wheels, Mitering 0°–60°, Glass thickness 3–22 mm, Dimensions 4963–2326 mm‍
• Flat 8 BS 30 – 8 wheels, Mitering 0°–45°, Glass thickness 3–30 mm, Dimensions 6075–2755 mm‍
• Flat 8 BS 30 CERIUM – 8 wheels, Mitering 0°–45°, Glass thickness 3–30 mm, Dimensions 6075–2755 mm‍
• Flat 9 BS 30 – 9 wheels, Mitering 0°–45°, Glass thickness 3–30 mm, Dimensions 6075–2755 mm‍
• Flat 9 BS 30 CERIUM – 9 wheels, Mitering 0°–45°, Glass thickness 3–30 mm, Dimensions 6240–2920 mm‍
• Flat 10 BS 30 CERIUM V.TS – 10 wheels, Mitering 0°–45°, Glass thickness 3–30 mm, Dimensions 8281–3205 mm

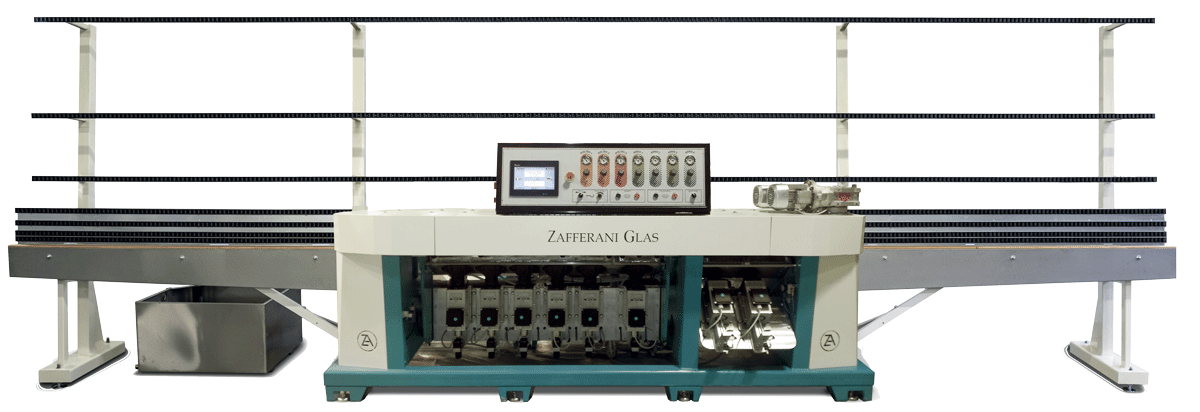

Straight line edging machine – VARIABLE ANGLE (Mitering)
