ZAFFERANI GLAS HORIZONTAL DRILLS

Zafferani Glas offers high-performance horizontal drilling machines designed for precision, reliability, and versatility in glass processing. Two versions are available to suit different production needs:

Available Models

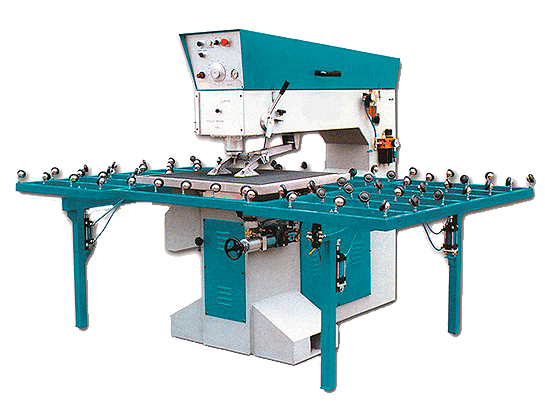

• AZ 110S – Semi-Automatic Version
• AZ 110A – Automatic Version

Optional on demand:‍

• laser centering system,
• pneumatic table for large glasses dimensions 2500x15000mm,
• water tank and pump for recycling system

‍Technical Data

Hole Diameters (with 2 bits)

• 4–100 mm
• 0.55–3.93 in

Maximum Hole Diameter (with 1 bit)

• 220 mm
• 8.66 in

Glass Thickness

• 3–25 mm
• 0.11–0.98 in

Outreach

• 1100 mm
• 43.30 in
