AZV 100
The vertical drilling machines for glass by Zafferani Glas are an ideal solution even for operators with limited workspace, offering compact design without compromising performance.
AZV 100 – Vertical Double-Head Manual Drilling Machine
The AZV 100 is a reliable and easy-to-use vertical drilling machine designed for fast, precise operations without the need for marking drilling positions. Its intuitive manual setup ensures quick adjustment and efficient workflow.
Key Features
- Simple and intuitive manual dimension setting
No marking of drilling dimensions required. - Double opposed drilling heads
Up to 4,000 rpm for accurate, high-speed drilling. - Wide processing range
Suitable for glass thicknesses from 3 to 20 mm and hole diameters from 3 to 100 mm. - Digital display
Allows electronic adjustment of spindle rotation speed. - Stoppers for serial work
Designed for repeated or production-series drilling tasks. - XL Version available (on request)
Machine extended by 1 meter on both sides for enhanced capacity.

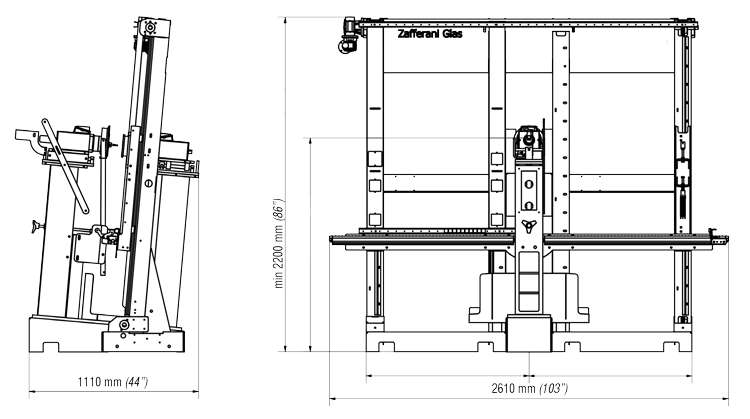

Technical Data
Drilling Height
- 1000 mm
- 39 in
Number of Heads
- 2
Glass Thickness
- 3–20 mm
- 1/8–25/32 in
Hole Diameter
- 3–100 mm
- 1/8–4 in
